Mild SteelMs Tube

MS Square Tube Weight Chart

Most Common Some Question is How do you calculate tube weight in kg? How do you calculate the weight of a tube in kg m? How do you calculate tubing weight? What is the weight of square tube? How do you calculate weight per kg? How do I calculate my kg weight? To answer Those Question Today I have share a list of Mild Steel Square Tube (SHS)weight Chart. in my previous post i have share Rectangle ms tube  (RHS ) weight chart. also you can read my post Easy weight calculation formula.

Check The Steel Price in UAE Today

This Weight list made by base on theoretical formula it has Tolerance “±” 5 to 10 %

Mild Steel Square Tube Weight Chart

Name  Product Code  Size (inch) Size (mm) Thickness (mm) Length (Mtr)  Per Mtr Weight(KG)  6 Mtr Weight(KG)
MS Tube  12 1/2”x1/2” 12×12 1 6 0.358 2.148
MS Tube  12 1/2”x1/2” 12×12 1.2 6 0.430 2.578
MS Tube  12 1/2”x1/2” 12×12 1.4 6 0.501 3.008
MS Tube  12 1/2”x1/2” 12×12 1.8 6 0.644 3.867
MS Tube  16 1/4”x1/4” 16×16 1 6 0.477 2.864
MS Tube  16 1/4”x1/4” 16×16 1.2 6 0.573 3.437
MS Tube  16 1/4”x1/4” 16×16 1.4 6 0.668 4.010
MS Tube  16 1/4”x1/4” 16×16 1.8 6 0.859 5.156
MS Tube  19 3/4”x3/4” 19×19 1 6 0.567 3.401
MS Tube  19 3/4”x3/4” 19×19 1.2 6 0.680 4.082
MS Tube  19 3/4”x3/4” 19×19 1.8 6 1.020 6.122
MS Tube  25 1”x1” 25×25 1 6 0.746 4.475
MS Tube  25 1”x1” 25×25 1.2 6 0.895 5.371
MS Tube  25 1”x1” 25×25 1.4 6 1.044 6.266
MS Tube  25 1”x1” 25×25 1.8 6 1.343 8.056
MS Tube  25 1”x1” 25×25 2.5 6 1.865 11.189
MS Tube  25 1”x1” 25×25 3 6 2.238 13.426
MS Tube  30 1 1/4”x1 1/4” 30×30 1 6 0.895 5.371
MS Tube  30 1 1/4”x1 1/4” 30×30 1.2 6 1.074 6.445
MS Tube  30 1 1/4”x1 1/4” 30×30 1.4 6 1.253 7.519
MS Tube  30 1 1/4”x1 1/4” 30×30 1.8 6 1.611 9.667
MS Tube  30 1 1/4”x1 1/4” 30×30 2 6 1.790 10.741
MS Tube  30 1 1/4”x1 1/4” 30×30 2.4 6 2.148 12.889
MS Tube  30 1 1/4”x1 1/4” 30×30 2.6 6 2.327 13.963
MS Tube  30 1 1/4”x1 1/4” 30×30 2.8 6 2.506 15.038
MS Tube  30 1 1/4”x1 1/4” 30×30 3 6 2.685 16.112
MS Tube  38 1 1/2”x1 1/2” 38×38 0.9 6 1.020 6.122
MS Tube  38 1 1/2”x1 1/2” 38×38 1 6 1.134 6.803
MS Tube  38 1 1/2”x1 1/2” 38×38 1.2 6 1.361 8.163
MS Tube  38 1 1/2”x1 1/2” 38×38 1.4 6 1.587 9.524
MS Tube  38 1 1/2”x1 1/2” 38×38 1.8 6 2.041 12.245
MS Tube  38 1 1/2”x1 1/2” 38×38 2 6 2.268 13.605
MS Tube  38 1 1/2”x1 1/2” 38×38 2.5 6 2.834 17.007
MS Tube  38 1 1/2”x1 1/2” 38×38 3 6 3.401 20.408
MS Tube  38 1 1/2”x1 1/2” 38×38 4 6 4.535 27.211
MS Tube  50 2”x2” 50×50 1 6 1.492 8.951
MS Tube  50 2”x2” 50×50 1.2 6 1.790 10.741
MS Tube  50 2”x2” 50×50 1.4 6 2.089 12.531
MS Tube  50 2”x2” 50×50 1.6 6 2.387 14.322
MS Tube  50 2”x2” 50×50 1.7 6 2.536 15.217
MS Tube  50 2”x2” 50×50 1.8 6 2.685 16.112
MS Tube  50 2”x2” 50×50 2 6 2.984 17.902
MS Tube  50 2”x2” 50×50 2.5 6 3.730 22.377
MS Tube  50 2”x2” 50×50 2.8 6 4.177 25.063
MS Tube  50 2”x2” 50×50 3 6 4.475 26.853
MS Tube  50 2”x2” 50×50 4 6 5.967 35.804
MS Tube  50 2”x2” 50×50 6 6 8.951 53.706
MS Tube  60 2 1/2”x2 1/2” 60×60 1.2 6 2.148 12.889
MS Tube  60 2 1/2”x2 1/2” 60×60 1.4 6 2.506 15.038
MS Tube  60 2 1/2”x2 1/2” 60×60 1.8 6 3.222 19.334
MS Tube  60 2 1/2”x2 1/2” 60×60 2 6 3.580 21.482
MS Tube  60 2 1/2”x2 1/2” 60×60 2.5 6 4.475 26.853
MS Tube  60 2 1/2”x2 1/2” 60×60 3 6 5.371 32.223
MS Tube  60 2 1/2”x2 1/2” 60×60 4 6 7.161 42.965
MS Tube  60 2 1/2”x2 1/2” 60×60 6 6 10.741 64.447
MS Tube  75 3”x3” 75×75 1.2 6 2.685 16.112
MS Tube  75 3”x3” 75×75 1.4 6 3.133 18.797
MS Tube  75 3”x3” 75×75 1.8 6 4.028 24.168
MS Tube  75 3”x3” 75×75 2 6 4.475 26.853
MS Tube  75 3”x3” 75×75 2.5 6 5.594 33.566
MS Tube  75 3”x3” 75×75 3 6 6.713 40.279
MS Tube  75 3”x3” 75×75 4 6 8.951 53.706
MS Tube  75 3”x3” 75×75 5 6 11.189 67.132
MS Tube  75 3”x3” 75×75 6 6 13.426 80.559
MS Tube  80 3”x3” 80×80 1.5 6 3.580 21.482
MS Tube  80 3”x3” 80×80 2 6 4.774 28.643
MS Tube  80 3”x3” 80×80 2.5 6 5.967 35.804
MS Tube  80 3”x3” 80×80 3 6 7.161 42.965
MS Tube  80 3”x3” 80×80 4 6 9.548 57.286
MS Tube  80 3”x3” 80×80 6 6 14.322 85.929
MS Tube  100 4”x4” 100×100 1.4 6 4.177 25.063
MS Tube  100 4”x4” 100×100 1.8 6 5.371 32.223
MS Tube  100 4”x4” 100×100 2.4 6 7.161 42.965
MS Tube  100 4”x4” 100×100 2.6 6 7.757 46.545
MS Tube  100 4”x4” 100×100 2.8 6 8.354 50.125
MS Tube  100 4”x4” 100×100 3 6 8.951 53.706
MS Tube  100 4”x4” 100×100 3.8 6 11.338 68.027
MS Tube  100 4”x4” 100×100 4.8 6 14.322 85.929
MS Tube  100 4”x4” 100×100 5.8 6 17.305 103.831
MS Tube  120 5”x5” 120×120 2 6 7.161 42.965
MS Tube  120 5”x5” 120×120 3 6 10.741 64.447
MS Tube  120 5”x5” 120×120 4 6 14.322 85.929
MS Tube  120 5”x5” 120×120 5 6 17.902 107.411
MS Tube  120 5”x5” 120×120 6 6 21.482 128.894
MS Tube  150 6”x6” 150×150 2.8 6 12.531 75.188
MS Tube  150 6”x6” 150×150 3.8 6 17.007 102.041
MS Tube  150 6”x6” 150×150 4.8 6 21.482 128.894
MS Tube  150 6”x6” 150×150 5.8 6 25.958 155.747
MS Tube  150 6”x6” 150×150 7.7 6 34.461 206.767
MS Tube  200 8”x8” 200×200 2.8 6 16.708 100.251
MS Tube  200 8”x8” 200×200 3.8 6 22.676 136.054
MS Tube  200 8”x8” 200×200 4.8 6 28.643 171.858
MS Tube  200 8”x8” 200×200 5.8 6 34.610 207.662
MS Tube  200 8”x8” 200×200 6.8 6 40.578 243.466
MS Tube  200 8”x8” 200×200 7.7 6 45.948 275.689
MS Tube  250 10”x10” 250×250 3 6 22.377 134.264
MS Tube  250 10”x10” 250×250 4 6 29.836 179.019
MS Tube  250 10”x10” 250×250 8 6 59.673 358.038
MS Tube  250 10”x10” 250×250 6 6 44.755 268.528
MS Tube  250 10”x10” 250×250 8 6 59.673 358.038
MS Tube  250 10”x10” 250×250 10 6 74.591 447.547

There are two type of tube available in market one is Square Hollow section (SHS) and Another is Rectangular Hollow section (RHS) .

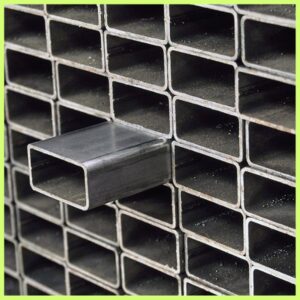

  1. Example image of Square Hollow section (SHS)
    ms tube RHS
