Mild Steel Rectangle Tube Weight chart
Some time its very important to know the weight of Rectangle MS tube so today i have share a list of MS tube weight chart and also you can read my previous post how to calculate weight of MS tube so that you can calculate weight of any tube in any size.
Mild Steel Rectangle Tube Weight chart
| Product Code | Size (inch) | Size (mm) | Thickness (mm) | Length in Mtr | Per Mtr Weight(KG) | 6 Mtr Weight(KG) |
| 30 | 1 1/2’x3/4′ | 40×20 | 1 | 6 | 0.895 | 5.371 |
| 30 | 1 1/2’x3/4′ | 40×20 | 1.2 | 6 | 1.074 | 6.445 |
| 30 | 1 1/2’x3/4′ | 40×20 | 1.4 | 6 | 1.253 | 7.519 |
| 30 | 1 1/2’x3/4′ | 40×20 | 1.8 | 6 | 1.611 | 9.667 |
| 30 | 1 1/2’x3/4′ | 40×20 | 2.4 | 6 | 2.148 | 12.889 |
| 30 | 1 1/2’x3/4′ | 40×20 | 2.6 | 6 | 2.327 | 13.963 |
| 30 | 1 1/2’x3/4′ | 40×20 | 3 | 6 | 2.685 | 16.112 |
| 37.5 | 2”x1” | 50×25 | 1 | 6 | 1.119 | 6.713 |
| 37.5 | 2”x1” | 50×25 | 1.2 | 6 | 1.343 | 8.056 |
| 37.5 | 2”x1” | 50×25 | 1.4 | 6 | 1.566 | 9.398 |
| 37.5 | 2”x1” | 50×25 | 1.8 | 6 | 2.014 | 12.084 |
| 37.5 | 2”x1” | 50×25 | 2 | 6 | 2.238 | 13.426 |
| 37.5 | 2”x1” | 50×25 | 2.5 | 6 | 2.797 | 16.783 |
| 37.5 | 2”x1” | 50×25 | 3 | 6 | 3.357 | 20.140 |
| 45 | 2 1/2”x1 1/4” | 60×30 | 1 | 6 | 1.343 | 8.056 |
| 45 | 2 1/2”x1 1/4” | 60×30 | 1.2 | 6 | 1.611 | 9.667 |
| 45 | 2 1/2”x1 1/4” | 60×30 | 1.4 | 6 | 1.880 | 11.278 |
| 45 | 2 1/2”x1 1/4” | 60×30 | 1.8 | 6 | 2.417 | 14.501 |
| 45 | 2 1/2”x1 1/4” | 60×30 | 2 | 6 | 2.685 | 16.112 |
| 45 | 2 1/2”x1 1/4” | 60×30 | 2.4 | 6 | 3.222 | 19.334 |
| 45 | 2 1/2”x1 1/4” | 60×30 | 2.8 | 6 | 3.759 | 22.556 |
| 45 | 2 1/2”x1 1/4” | 60×30 | 3 | 6 | 4.028 | 24.168 |
| 45 | 2 1/2”x1 1/4” | 60×30 | 4 | 6 | 5.371 | 32.223 |
| 60 | 3”x1 1/2” | 80×40 | 1 | 6 | 1.790 | 10.741 |
| 60 | 3”x1 1/2” | 80×40 | 1.2 | 6 | 2.148 | 12.889 |
| 60 | 3”x1 1/2” | 80×40 | 1.4 | 6 | 2.506 | 15.038 |
| 60 | 3”x1 1/2” | 80×40 | 1.8 | 6 | 3.222 | 19.334 |
| 60 | 3”x1 1/2” | 80×40 | 2 | 6 | 3.580 | 21.482 |
| 60 | 3”x1 1/2” | 80×40 | 2.4 | 6 | 4.296 | 25.779 |
| 60 | 3”x1 1/2” | 80×40 | 3 | 6 | 5.371 | 32.223 |
| 60 | 3”x1 1/2” | 80×40 | 4 | 6 | 7.161 | 42.965 |
| 75 | 4”x2” | 100×50 | 1.2 | 6 | 2.685 | 16.112 |
| 75 | 4”x2” | 100×50 | 1.4 | 6 | 3.133 | 18.797 |
| 75 | 4”x2” | 100×50 | 1.6 | 6 | 3.580 | 21.482 |
| 75 | 4”x2” | 100×50 | 1.8 | 6 | 4.028 | 24.168 |
| 75 | 4”x2” | 100×50 | 2 | 6 | 4.475 | 26.853 |
| 75 | 4”x2” | 100×50 | 2.4 | 6 | 5.371 | 32.223 |
| 75 | 4”x2” | 100×50 | 3 | 6 | 6.713 | 40.279 |
| 75 | 4”x2” | 100×50 | 3.6 | 6 | 8.056 | 48.335 |
| 75 | 4”x2” | 100×50 | 4 | 6 | 8.951 | 53.706 |
| 75 | 4”x2” | 100×50 | 4.8 | 6 | 10.741 | 64.447 |
| 90 | 5”x2 1/2” | 120×60 | 1.8 | 6 | 4.834 | 29.001 |
| 90 | 5”x2 1/2” | 120×60 | 2.4 | 6 | 6.445 | 38.668 |
| 90 | 5”x2 1/2” | 120×60 | 2.8 | 6 | 7.519 | 45.113 |
| 90 | 5”x2 1/2” | 120×60 | 3.6 | 6 | 9.667 | 58.002 |
| 90 | 5”x2 1/2” | 120×60 | 3.8 | 6 | 10.204 | 61.224 |
| 90 | 5”x2 1/2” | 120×60 | 4.8 | 6 | 12.889 | 77.336 |
| 112.5 | 6”x3” | 150×75 | 2.8 | 6 | 9.398 | 56.391 |
| 112.5 | 6”x3” | 150×75 | 3.8 | 6 | 12.755 | 76.531 |
| 112.5 | 6”x3” | 150×75 | 4.8 | 6 | 16.112 | 96.670 |
| 112.5 | 6”x3” | 150×75 | 5.8 | 6 | 19.468 | 116.810 |
| 150 | 8”x4” | 200×100 | 2.8 | 6 | 12.531 | 75.188 |
| 150 | 8”x4” | 200×100 | 3.8 | 6 | 17.007 | 102.041 |
| 150 | 8”x4” | 200×100 | 4.8 | 6 | 21.482 | 128.894 |
| 150 | 8”x4” | 200×100 | 5.8 | 6 | 25.958 | 155.747 |
| 150 | 8”x4” | 200×100 | 7.8 | 6 | 34.909 | 209.452 |
| 187.5 | 10”x5” | 250×125 | 3.8 | 6 | 21.259 | 127.551 |
| 187.5 | 10”x5” | 250×125 | 4.8 | 6 | 26.853 | 161.117 |
| 187.5 | 10”x5” | 250×125 | 5.8 | 6 | 32.447 | 194.683 |
| 225 | 12”x6” | 300×150 | 4 | 6 | 26.853 | 161.117 |
| 225 | 12”x6” | 300×150 | 5 | 6 | 33.566 | 201.396 |
| 225 | 12”x6” | 300×150 | 6 | 6 | 40.279 | 241.676 |
| 300 | 16”x8” | 400×200 | 5.8 | 6 | 51.916 | 311.493 |
| 300 | 16”x8” | 400×200 | 7.8 | 6 | 69.817 | 418.904 |
There are two type of tube available in market one is Square Hollow section (SHS) and Another is Rectangular Hollow section (RHS) .

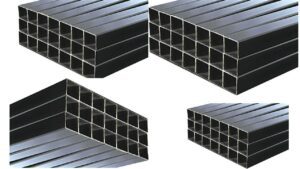

Rectangular Hollow section (RHS)

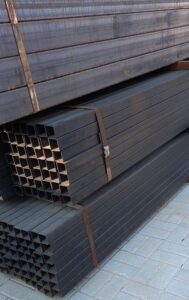

Square Hollow section (SHS)

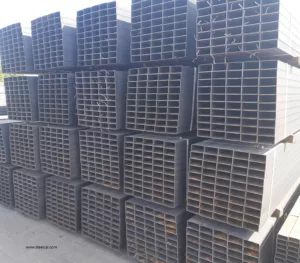

Ms Square and rectangular steel tube stock image
