Shafting bar weight Chart in kg

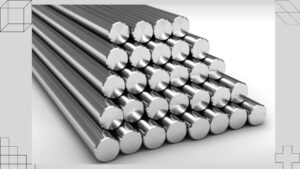

Updated November 2026. Shafting bars are bright, precision round bars used for shafts, pins, axles and machined parts. This chart lists the weight of MS shafting bar from 10 mm to 100 mm diameter, in kg per metre and per 6 m bar. A 50 mm shafting bar, for example, weighs about 15.4 kg per metre.

American Standard size Shafting bar weight Chart in kg

SL	Description	Per Meter weight in kg	6 meter in Kg/pc
1	M.S. Shafting Bar –  10 mm x 6 mtr	0.62	3.7
2	M.S. Shafting Bar –  12 mm x 6 mtr	0.89	5.32
3	M.S. Shafting Bar –  14 mm x 6 mtr	1.21	7.25
4	M.S. Shafting Bar –  16 mm x 6 mtr	1.58	9.47
5	M.S. Shafting Bar –  19 mm x 6 mtr	2.23	13.36
6	M.S. Shafting Bar –  20 mm x 6 mtr	2.47	14.8
7	M.S. Shafting Bar –  22 mm x 6 mtr	2.99	17.91
8	M.S. Shafting Bar –  25 mm x 6 mtr	3.86	23.13
9	M.S. Shafting Bar –  28 mm x 6 mtr	4.82	28.94
10	M.S. Shafting Bar –  30 mm x 6 mtr	5.55	33.3
11	M.S. Shafting Bar –  32 mm x 6 mtr	6.31	37.88
12	M.S. Shafting Bar –  36 mm x 6 mtr	7.99	47.95
13	M.S. Shafting Bar –  38 mm x 6 mtr	8.90	53.42
14	M.S. Shafting Bar –  40 mm x 6 mtr	9.87	59.2
15	M.S. Shafting Bar –  45 mm x 6 mtr	12.49	74.92
16	M.S. Shafting Bar –  50 mm x 6 mtr	15.42	92.5
17	M.S. Shafting Bar –  55 mm x 6 mtr	18.65	111.92
18	M.S. Shafting Bar –  60 mm x 6 mtr	22.15	132.9
19	M.S. Shafting Bar –  65 mm x 6 mtr	26.05	156.32
20	M.S. Shafting Bar –  70 mm x 6 mtr	30.17	181
21	M.S. Shafting Bar –  75 mm x 6 mtr	34.69	208.12
22	M.S. Shafting Bar –  80 mm x 6 mtr	39.33	236
23	M.S. Shafting Bar –  90 mm x 6 mtr	49.95	299.7
24	M.S. Shafting Bar –  100 mm x 6 mtr	61.53	369.2

Download PDF: Download Shafting Bar Weight Chart (PDF) Shafting Bar weight Calculation formula Shafting Bar Price Today in UAE : 4000Aed per Ton

How to calculate shafting bar weight

Shafting bar weight per metre = D² × 0.006165 (D = diameter in mm, result in kg/m), using the density of steel, 7,850 kg/m³.

• 20 mm: 20 × 20 × 0.006165 = 2.47 kg/m, or 14.8 kg per 6 m
• 50 mm: 50 × 50 × 0.006165 = 15.41 kg/m, or 92.5 kg per 6 m
• 100 mm: 100 × 100 × 0.006165 = 61.65 kg/m, or 369.9 kg per 6 m

Shafting bar vs MS round bar

Both are solid round steel. Shafting bar is cold drawn or turned and polished to a tighter diameter tolerance and smoother finish, so it can be used for shafts with little or no machining. Ordinary MS round bar is hot rolled with a looser tolerance and a black (mill scale) surface. For the same diameter, the weight per metre is practically the same.
