U Channel weight chart

Mild Steel U Channel / C channel weight and Thickness list .

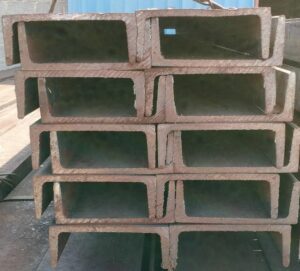

c channel

Execution Description  Description (C Channel ) weight /Meter in KG 6meter /kg  h mm b mm tw mm tf mm r1 mm r2 mm
Hot Rolled/Laser U Channel  C 50X25X5X6 3.95 23.7 50 25 5 6 6 3
Hot Rolled/Laser U Channel  C 75X40X5X7 5.36 32.16 75 40 5 7 8 4
Hot Rolled/Laser U Channel  C 75X40X5X7 6.95 41.7 75 40 5 7 8 4
Hot Rolled/Laser U Channel  C 100X50X5X7.36 7.36 44.16 100 50 4 7.5 8 4
Hot Rolled/Laser U Channel  C 100X50X5X9.36 9.37 56.22 100 50 5 7.5 8 4
Hot Rolled/Laser U Channel  C 100X50X5X10.5 10.6 63.6 100 50 6 7.5 8 4
Hot Rolled/Laser U Channel  C 125X65X6X8 13.4 80.4 100 65 6 8 8 4
Hot Rolled/Laser U Channel  C 150X75X6.5X10 18.62 111.72 150 75 6.5 10 10 5
Hot Rolled/Laser U Channel  C 150X75X6.5X10 18.62 111.72 150 75 6.5 10 10 5
Hot Rolled/Laser U Channel  C 150X75X9X12.5 24.01 144.06 150 75 9 12.5 5 1
Hot Rolled/Laser U Channel  C 180X75X7X10.5 21.52 129.12 180 75 7 10 2 1
Hot Rolled/Laser U Channel  C 200X80X7.5X11 24.77 148.62 200 80 7.5 11 2 1
Hot Rolled/Laser U Channel  C 200X90X8X13.5 30.53 183.18 200 90 8 13.5 2 1
Hot Rolled/Laser U Channel  C 230X80X8X12 28.56 171.36 230 80 8 12 2 1
Hot Rolled/Laser U Channel  C 250X90X9X13 34.86 209.16 250 90 9 13 2 1
Hot Rolled/Laser U Channel  C 250X90X11X14.5 40.34 242.04 250 90 11 14.5 2 1
Hot Rolled/Laser U Channel  C 300X90X9X12 37.17 223.02 300 90 9 12 2 1
Hot Rolled/Laser U Channel  C 300X90X10X15.5 43.85 263.1 300 90 10 15.5 2 1
Hot Rolled/Laser U Channel  C 300X90X12X16 48.78 292.68 300 90 12 16 2 1
Hot Rolled/Laser U Channel  C 380X100X10.5X16 54.85 329.1 380 100 10.5 16 2 1
Hot Rolled/Laser U Channel  C 380X100X13X16.5 62.5 375 380 100 13 16.5 2 1
Hot Rolled/Laser U Channel  C 380X100X13X20 62.5 375 380 100 13 20 2 1
