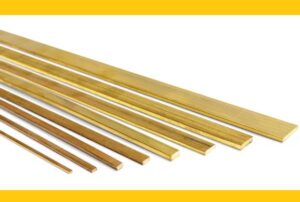

Brass Flat Bar Weight Chart

Quick answer: Brass flat bar weight (kg/m) = width (mm) × thickness (mm) × 0.0085. Example: a 25 × 3 mm brass flat bar weighs about 0.64 kg/m, or 3.8 kg for a 6 m length.

Brass Flat Bar Size and Weight Chart

SL	Description	Size(mm)	Thickness (mm)	Length(m)	Weight per (kg/m)	weight Full Length (kg)
1	Brass Flat Bar	8	1	6	0.068	0.408
2	Brass Flat Bar	10	1	6	0.086	0.516
3	Brass Flat Bar	6	1.5	6	0.077	0.462
4	Brass Flat Bar	8	1.5	6	0.103	0.618
5	Brass Flat Bar	10	1.5	6	0.128	0.768
6	Brass Flat Bar	12	1.5	6	0.154	0.924
7	Brass Flat Bar	15	1.5	6	0.193	1.158
8	Brass Flat Bar	20	1.5	6	0.257	1.542
9	Brass Flat Bar	6	2	6	0.103	0.618
10	Brass Flat Bar	8	2	6	0.137	0.822
11	Brass Flat Bar	10	2	6	0.171	1.026
12	Brass Flat Bar	12	2	6	0.205	1.23
13	Brass Flat Bar	15	2	6	0.257	1.542
14	Brass Flat Bar	19	2	6	0.325	1.95
15	Brass Flat Bar	20	2	6	0.342	2.052
16	Brass Flat Bar	25	2	6	0.428	2.568
17	Brass Flat Bar	30	2	6	0.514	3.084
18	Brass Flat Bar	40	2	6	0.685	4.11
19	Brass Flat Bar	8	2.5	6	0.171	1.026
20	Brass Flat Bar	10	2.5	6	0.214	1.284
21	Brass Flat Bar	12	2.5	6	0.257	1.542
22	Brass Flat Bar	15	2.5	6	0.321	1.926
23	Brass Flat Bar	20	2.5	6	0.428	2.568
24	Brass Flat Bar	25	2.5	6	0.535	3.21
25	Brass Flat Bar	30	2.5	6	0.642	3.852
26	Brass Flat Bar	6	3	6	0.154	0.924
27	Brass Flat Bar	8	3	6	0.205	1.23
28	Brass Flat Bar	10	3	6	0.257	1.542
29	Brass Flat Bar	12	3	6	0.308	1.848
30	Brass Flat Bar	15	3	6	0.385	2.31
31	Brass Flat Bar	20	3	6	0.514	3.084
32	Brass Flat Bar	25	3	6	0.642	3.852
33	Brass Flat Bar	30	3	6	0.77	4.62
34	Brass Flat Bar	35	3	6	0.899	5.394
35	Brass Flat Bar	40	3	6	1.027	6.162
36	Brass Flat Bar	50	3	6	1.284	7.704
37	Brass Flat Bar	8	4	6	0.274	1.644
38	Brass Flat Bar	10	4	6	0.342	2.052
39	Brass Flat Bar	12	4	6	0.411	2.466
40	Brass Flat Bar	15	4	6	0.514	3.084
41	Brass Flat Bar	20	4	6	0.685	4.11
42	Brass Flat Bar	25	4	6	0.856	5.136
43	Brass Flat Bar	30	4	6	1.027	6.162
44	Brass Flat Bar	40	4	6	1.37	8.22
45	Brass Flat Bar	50	4	6	1.712	10.272
46	Brass Flat Bar	10	5	6	0.428	2.568
47	Brass Flat Bar	12	5	6	0.514	3.084
48	Brass Flat Bar	15	5	6	0.642	3.852
49	Brass Flat Bar	20	5	6	0.856	5.136
50	Brass Flat Bar	25	5	6	1.07	6.42
51	Brass Flat Bar	30	5	6	1.284	7.704
52	Brass Flat Bar	35	5	6	1.498	8.988
53	Brass Flat Bar	40	5	6	1.712	10.272
54	Brass Flat Bar	50	5	6	2.14	12.84
55	Brass Flat Bar	60	5	6	2.568	15.408
56	Brass Flat Bar	80	5	6	3.424	20.544
57	Brass Flat Bar	100	5	6	4.28	25.68
58	Brass Flat Bar	8	6	6	0.411	2.466
59	Brass Flat Bar	10	6	6	0.514	3.084
60	Brass Flat Bar	12	6	6	0.616	3.696
61	Brass Flat Bar	15	6	6	0.77	4.62
62	Brass Flat Bar	18	6	6	0.924	5.544
63	Brass Flat Bar	20	6	6	1.027	6.162
64	Brass Flat Bar	25	6	6	1.284	7.704
65	Brass Flat Bar	30	6	6	1.541	9.246
66	Brass Flat Bar	40	6	6	2.054	12.324
67	Brass Flat Bar	50	6	6	2.568	15.408
68	Brass Flat Bar	60	6	6	3.082	18.492
69	Brass Flat Bar	70	6	6	3.595	21.57
70	Brass Flat Bar	80	6	6	4.109	24.654
71	Brass Flat Bar	100	6	6	5.136	30.816
72	Brass Flat Bar	9	6.5	6	0.501	3.006
73	Brass Flat Bar	20	8	6	1.37	8.22
74	Brass Flat Bar	25	8	6	1.712	10.272
75	Brass Flat Bar	30	8	6	2.054	12.324
76	Brass Flat Bar	40	8	6	2.739	16.434
77	Brass Flat Bar	50	8	6	3.424	20.544
78	Brass Flat Bar	60	8	6	4.109	24.654
79	Brass Flat Bar	80	8	6	5.478	32.868
80	Brass Flat Bar	100	8	6	6.848	41.088
81	Brass Flat Bar	6.5	9	6	0.501	3.006
82	Brass Flat Bar	15	10	6	1.284	7.704
83	Brass Flat Bar	20	10	6	1.712	10.272
84	Brass Flat Bar	25	10	6	2.14	12.84
85	Brass Flat Bar	30	10	6	2.568	15.408
86	Brass Flat Bar	40	10	6	3.424	20.544
87	Brass Flat Bar	50	10	6	4.28	25.68
88	Brass Flat Bar	60	10	6	5.136	30.816
89	Brass Flat Bar	80	10	6	6.848	41.088
90	Brass Flat Bar	100	10	6	8.56	51.36
91	Brass Flat Bar	150	10	6	12.84	77.04
92	Brass Flat Bar	250	10	6	21.4	128.4
93	Brass Flat Bar	6.5	11	6	0.612	3.672
94	Brass Flat Bar	40	12	6	4.109	24.654
95	Brass Flat Bar	40	15	6	5.136	30.816
96	Brass Flat Bar	60	15	6	7.704	46.224
97	Brass Flat Bar	120	15	6	15.408	92.448
98	Brass Flat Bar	180	15	6	23.112	138.672
99	Brass Flat Bar	45	20	6	7.704	46.224
100	Brass Flat Bar	50	20	6	8.56	51.36
101	Brass Flat Bar	40	30	6	10.272	61.632

Brass Square Tube Weight Chart

Frequently asked questions

How do I calculate brass flat bar weight?

Multiply width × thickness (mm) × 0.0085 to get kg/m, then multiply by the length.

What is brass flat bar used for?

Earthing and bus bars, trims, nameplates, hinges, decorative strips and machined parts.

What is the density of brass?

About 8,400–8,700 kg/m³; 8,500 is used for estimates.
